• Implant measurements.
• Anatomy or tooth morphology assessment.
• Inferior alveolar nerve tracing / assessement.
• Airway obstruction.
• Nerve identification.
• Sinus evaluation.
• TMJ evaluation.
• Impacted Teeth.

What is the difference between a CBCT and a Medical CT Scan?
The main difference between CBCT and Medical(multi-slice)CT are

1.Radiation dose

Region Scanned	CBCT effective dose(sv)ICRP 2007	Medical CT effective dose(sv)ICRP 2007
Mandible	75.3	5003*
Full Head	110.5	1,088.3*

*Average from 3 Scanners(Somaton VolumneZoom 4,Somatom Sensation 16)

2.Image Resolution :

For Hard tissue and teeth,CBCT offers higher resolution and image sharpness compare to medical CT (Medical-Slice CT or MSCT )

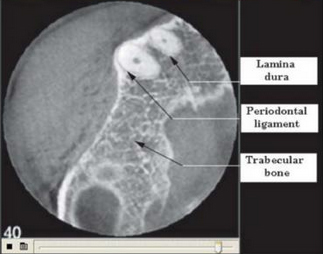

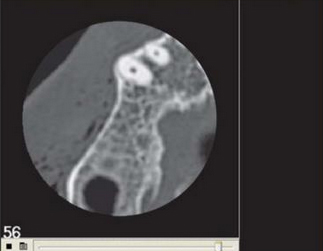

A CBCT Slice.Note the good Visibility of the lamina dura peridontal ligament space, and trabecular bone	An MSCT Slice. In this Image.Differentiation between lamina dura and peridontal ligament is very difficult.

M.Loubele et al.A comparison of jaw dimentional and quality assessments of bone characteristics with Cone-Beam CT, Spiral Tomography, and Multi-Slice Spiral CT.Int J.Oral Maxilofac Implants 2007:22:446-454.

3. Metal artifact reduction:

CBCT offers better metal artifact reduction compared to medical CT.This is important because many patients crowns or restorationc that cause streaking artifacts that may interface with the visualization of the region of interest.

Coronal Image of projectile in the Immediate victinity of bony structure (A) CT Image (B) CBCT Image.

From G Von See at al Forensic imaging of projectiles using cone-beam computed tomography. Forensic Science International 190(2009)38-41.
